The Problem With Small Oil Filler Openings
Many aircraft engines, gearboxes, and hydraulic reservoirs have oil filler openings smaller than 18mm in diameter. Standard filler tools do not fit. The result is improvised filling – oil spills, overfilling, and the risk of contamination entering the system during servicing.
TheCanKey Cut-To-Size Filler Nozzles solve this directly.
What Is Included
Each set contains two transparent PE plastic components:
|
Cut-To-Size Nozzle Trimmable to match the exact diameter of any filler opening under 18mm. Trim once, fit precisely, fill cleanly. One size adapts to all. |
Cap Nozzle Seals the open nozzle between uses – preventing dust, debris, and contamination from entering during handling and storage. |
The transparent design gives maintenance personnel full visibility of oil flow during filling – helping avoid overfilling and spills on every service.
Compatible With

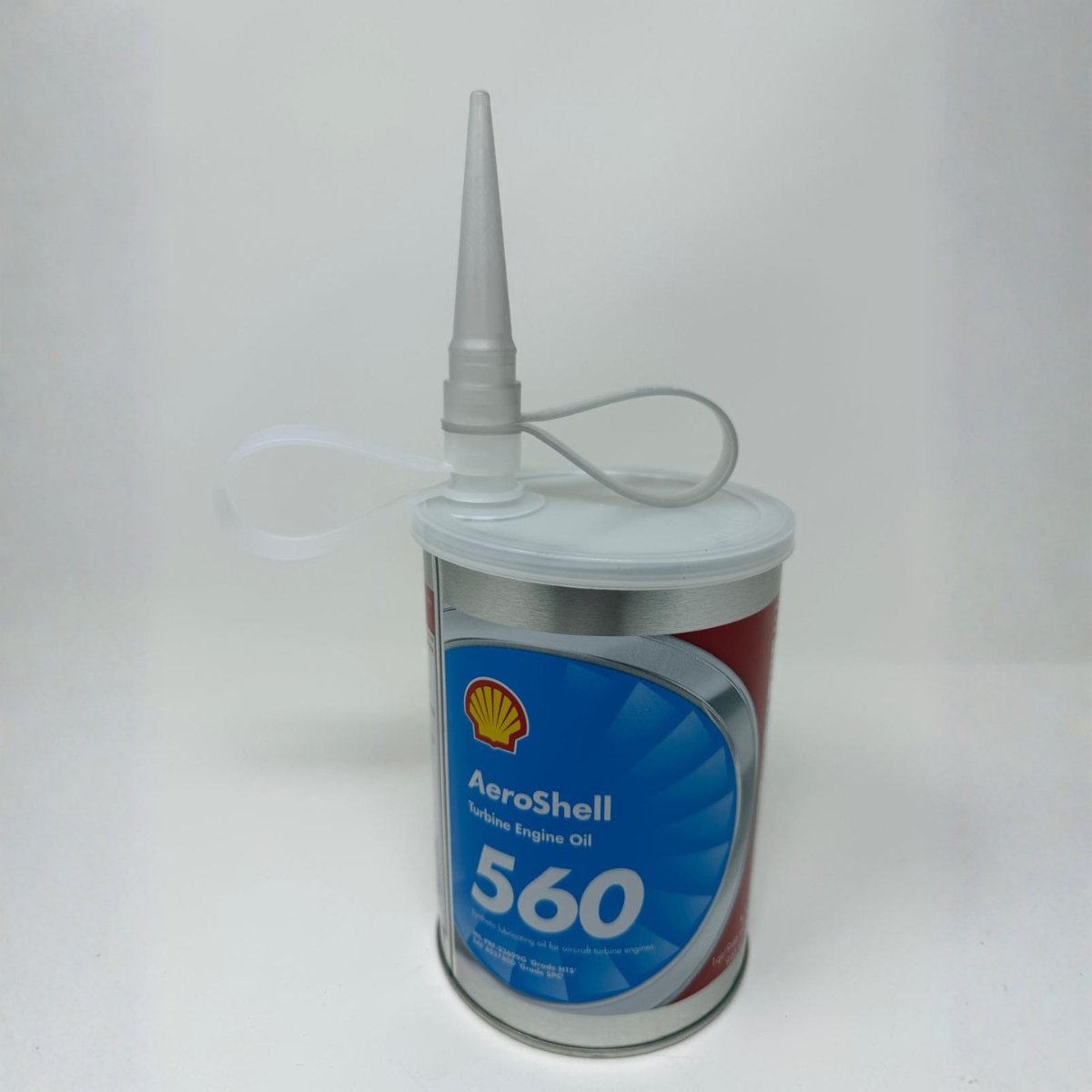

Cut-To-Size Filler Nozzles are fully compatible with the
TheCanKey FunnelCap range
and suitable for use with:
| Piston engine oil bottles |
| Turbine engine oil quart cans |
| Hydraulic fluid gallon cans |
Designed For Small Filler Openings
These nozzles are ideal for oil fillers and reservoirs found in:
| Helicopter gearboxes |
| Hydraulic reservoirs |
| Air Cycle Machines (ACMs) |
| Turbine engines with restricted filler ports |
Specific Aircraft Applications
Particularly useful for aircraft with restricted filler openings, including:
| HondaJet HA-420 (GE Honda HF120) | Cirrus Vision Jet SF50 (Williams FJ33) |
| Cessna CitationJet series (Williams FJ44) | Beechcraft Premier I / IA / 400XPR |
| Pilatus PC-24 | Saab 105 military trainer |
Specification
| Material | Durable PE plastic — transparent for full flow visibility |
| Compatibility | TheCanKey FunnelCap (all variants) |
| Filler opening size | Up to 18mm diameter |
| Contents | 2 nozzles per set |
| Price | USD 4.95 per set |
| Minimum order | $80 minimum order value (mix & match — total cart value applies) |
Important — What You Also Need
The Cut-To-Size Filler Nozzles work
in combination with a TheCanKey FunnelCap — sold separately.
Select the FunnelCap that matches the container you are pouring from:
-
FunnelCap | Bottle Cap
— for plastic oil bottles -
FunnelCap | Quart Can
— for one-quart turbine oil cans -
FunnelCap | Gallon Can
— for gallon cans and hydraulic fluid containers
Limited space or a short distance to the filler port?
Consider adding a
Short Flex Hose (9″)
— designed for restricted access and tight engine bays where a rigid nozzle cannot reach.
